GSM / CDMA / 3G / 4G Remote control board series ( GSM controller box )

GSM Remote switch, gsm relay switch, gsm sms remote control, gsm controller,gsm switch controller and GSM control box

GSM or CDMA remote control switch, it connects to the mobile phone network and like a mobile phone has its own telephone number . The device is activated by calling its phone number or send the SMS control command, it will recognise an authorised telephone number calling it, reject the call without answering and switch on or off the device connected to it.

It's applications include the remote control of central heating, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting & reboot of remote servers and routers, arming and disarming security systems.

GSM remote control technical knowledge before order:

1. What is the relay output in your GSM remote control board ? how to connect the outout terminal?
---- Please check our files of Relay_control_output_faq

2. What is the GSM remote control sets ? and why and how we use the GSM remote control device?
---- Please check our files of What's Gsm remote control

For WAFER GSM controller products selection guide,please check the pages of GSM Application FAQ

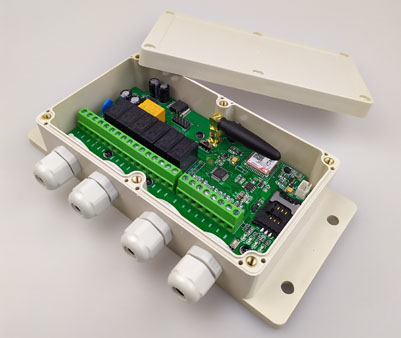

Model: GSM-RELAY 2016Version

GSM controller,Working with GSM cell phone network
7 Relay channel,each at 220V/10A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Backup battery on board for power off alarm

Wifi-plug compatible working
All functions compatible with GSM-RELAY
Working frequency:850/900/1800/1900MHz

========>>>>>>Detail

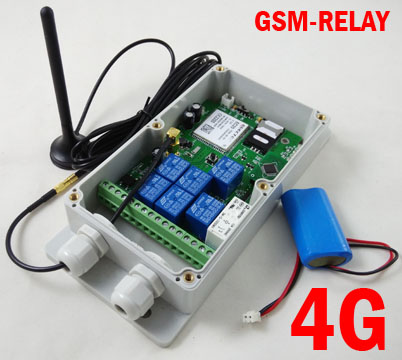

Model: GSM-RELAY 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
7 Relay channel,each at 220V/10A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

All functions compatible with GSM-RELAY

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

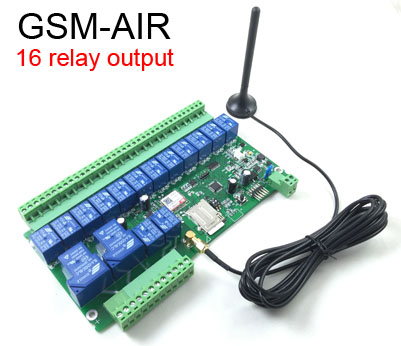

Model: GSM-AIR

GSM Remote control board, Working with GSM cell phone network
16 Relay channel,each at 220V/30A power
Din Rail mounting box for outside project
PC Program adapter and software included
Power supply with DC12V

========>>>>>>Detail

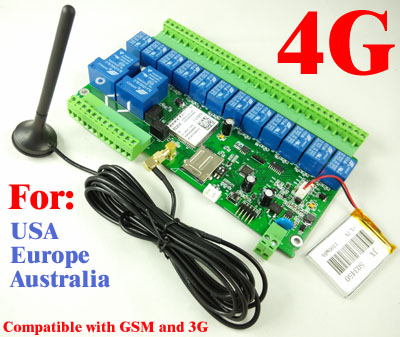

Model: GSM-AIR 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
16 Relay output switch channel
Rechargeable battery for power off alarm
PC Program adapter and software included
Power supply with DC12V
All functions compatible with GSM-AIR

On boar backup battery for power off alarm

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe,Australia:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

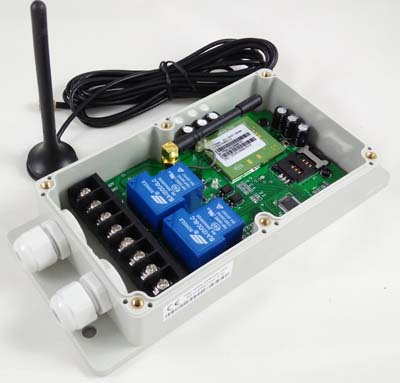

Model: GSM-CTL

GSM Remote control board, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

========>>>>>>Detail

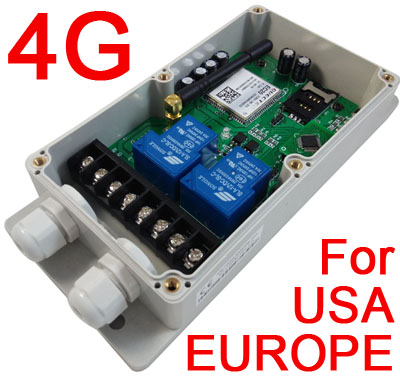

Model: GSM-CTL-4G

4G Remote control board, Working with GSM cell phone network and 3G, 4G net work.
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

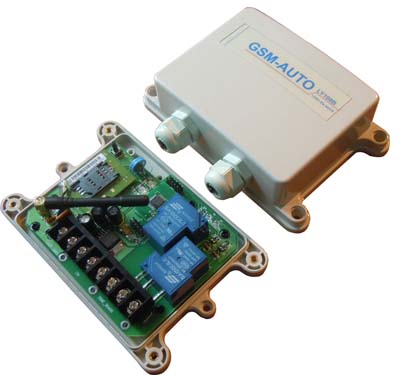

Model: GSM-AUTO

GSM Remote control box, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with 12-24VAC/DC

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail

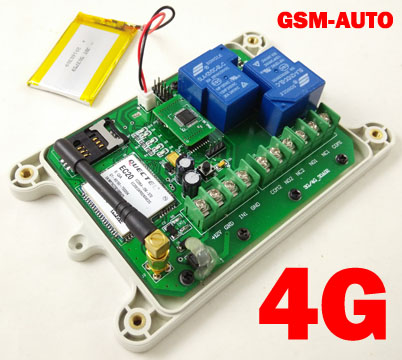

Model: GSM-AUTO 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with DC12V
All functions compatible with GSM-AUTO

On boar backup battery for power off alarm

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe,Australia:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

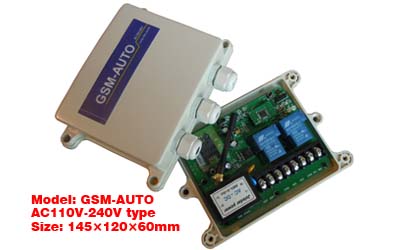

Model: GSM-AUTO-AC

GSM SMS Remote control box, GSM relay switch controller, SMS relay controller
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with AC110-240V

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail

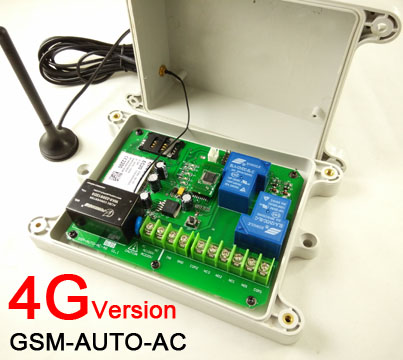

Model: GSM-AUTO-AC 4G Version

4G Remote control board, Working with 4G/3G and GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Power supply with AC100-240V
All functions compatible with GSM-AUTO

On boar backup battery for power off alarm

Working band for USA:
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B2/B4/B5/B12/B17

Working band for Europe,Australia:
FDD LTE:B1/B3/B5/B7/B8/B20
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

========>>>>>>Detail

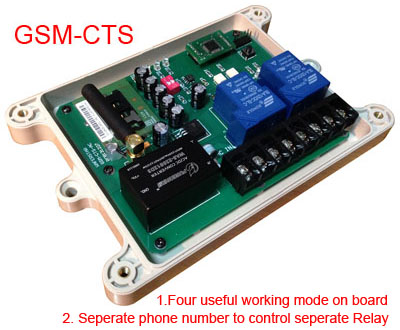

Model: GSM-CTS

GSM SMS relay control box, GSM relay switch controller, SMS relay controller

Water-proof box for outside project
PC Program adapter and software included
Power supply with AC110-240V

2 Relay channel,each at 220V/30A power
Seperate phone call to control Seperate Relay
Four type working mode can be easily preset with On-board DIP SWITCH

Phone calling and SMS switch mode or pulse mode control

========>>>>>>Detail

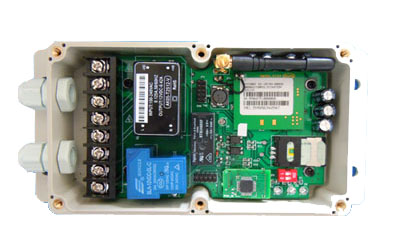

Model: GSM-CTL-AC

GSM Remote switch controller, Working with GSM cell phone network
2 Relay channel,maximum at 230V/30A power
Water-proof box for outside project
PC Program adapter and software included
Config both relay working mode with Switch
Power supply with 100VAC to 230VAC

========>>>>>>Detail

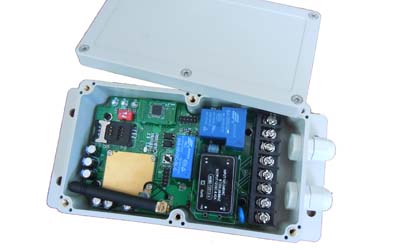

Model: CDMA-CTL-AC

CDMA Remote control board,Working with CDMA cell phone network
2 Relay channel,maximum at 230V/30A power
Water-proof box for outside project
PC Program adapter and software included
Config both relay working mode with Switch
Power supply with 100VAC to 230VAC

========>>>>>>Detail

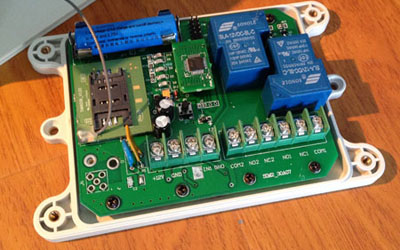

Model: GSM-WEEKLY

GSM SMS Remote control box, Working with GSM cell phone network
2 Relay channel,each at 220V/30A power
Water-proof box for outside project
PC Program adapter and software included
Rechargeable lithium battery
Alarm input port designed
Weekly working timer designed inside
Power supply with 12-24VAC/DC

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail

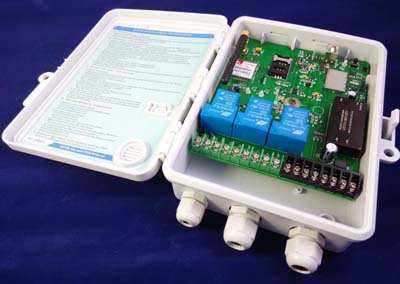

Model: GSM-TOG

GSM Remote switch controller, Working with GSM cell phone network
3 Relay channel,maximum at 230V/30A power
3 Alarm input
USB Program adapter and software included
Config both relay working mode with Switch
Power supply with DC9-36V (DC18-72V and AC100-240V are optional )

========>>>>>>Detail

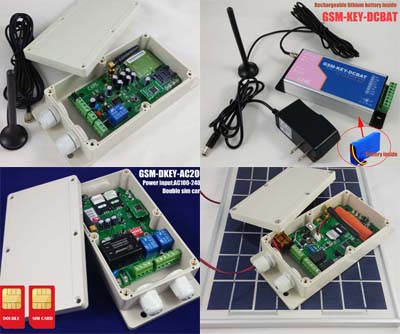

Model: GSM-KEY

We are GSM-KEY, we not only suitable for Door and gate opener.

We can be used for many different projects and we can be powered with battery, solar power, backup power supply.We also have alarm input port for many projects for alarm detection.
Water-proof box or aluminium box design
Special phone numbers to control the system

Onboard clock for scheduled time table to work
Both relay work at switch mode or pulse mode

========>>>>>>Detail
