MDB-RS232 Interface For kiosk computer or vending PC machine

A simple yet powerful way to integrate bill acceptor, coin acceptors, coin dispensers and cashless devices into PC based vending applications. The vending industry standard NAMA Multi-Drop Bus (MDB) may now be interfaced to a PC using the MDB-RS232. The MDB-RS232 allows Coin Acceptance, Change Dispensing, credit card reader and bill validation all controlled by the PC.Conforms to all NAMA MDB specification and is compatible with any MDB compliant vending device. Hardware interface comes with cables,user's guide and user's protocal.

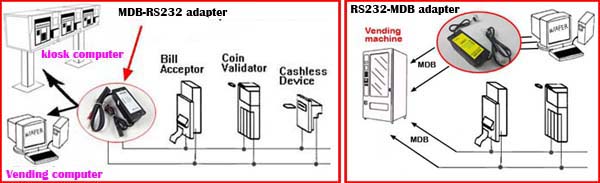

What is MDB-RS232 and RS232-MDB ?

Before order,you should know exactly what is the difference and then you will know what type is the exact products yoou need to order:

MDB-RS232 is used to connect the MDB bill acceptor,coin validator,cashless payment device to computer. then you will design the Software that will run in the PC and work as the master main vending controller. For example,you develop the kiosk information machine. then you need to connect the MDB bill acceptor,coin validator to computer,but you don't know how to connect the MDB interface payment device to computer, because computer only has the RS232 port, no MDB port.then you need to order the MDB-RS232 adapter (MDB-PC Adapter ).

RS232-MDB is used to connect the pc to existing vending machine.then you will need to design the Software that will run in the PC and work as the slave cashless payment device.and then you PC will work as a cashless payment device to vending machine. For example,you want to use the PC to give payment credit to existing vending machine, or if you want to make the internet connection to the vending machine and give credit to vending machine remotely, then you need to order the RS232-MDB adapter (PC-MDB adapter ).

We also provide MDB adapter customized design.Just let me know in detail your project requirement.

Order the samples directly from http://www.wafer-shopping.com :

WAFER Support MDB adapter, MDB-RS232,RS232-MDB and MDB BUS data monitor customized design for your projects

RS232-MDB Interface for vending machine,working as the cashless payment device

A PC-based vending application that utilizes NAMA’s Multi-drop Bus protocol to interface a computer with the existing vending machine. RS232-MDB allows the PC to act as a slave cashless device for existing vending machine controllers (VMC). The RS232-MDB interfaces any MDB vending device to the PC via the serial port. and allow the PC to control the vending machine.

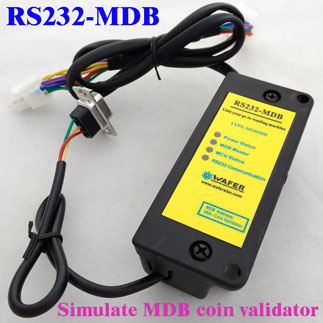

RS232-MDB Interface for vending machine,working as the MDB coin validator

A PC-based vending application that utilizes NAMA’s Multi-drop Bus protocol to interface a computer with the existing vending machine. RS232-MDB allows the PC to act as a coin validator device for existing vending machine controllers (VMC). The RS232-MDB interfaces any MDB vending device to the PC via the serial port. and allow the PC to act as the MDB coin validator payment device the vending machine.

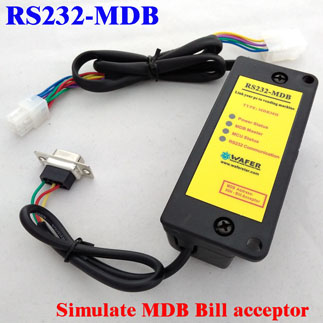

RS232-MDB Interface for vending machine,working as the Bill acceptor device

A PC-based vending application that utilizes NAMA’s Multi-drop Bus protocol to interface a computer with the existing vending machine. RS232-MDB allows the PC to act as a bill acceptor device for existing vending machine controllers (VMC). The RS232-MDB interfaces any MDB vending device to the PC via the serial port. and allow the PC to act as the MDB bill acceptor payment device the vending machine.





MDB-RS232 Interface For kiosk computer or vending PC machine

A simple yet powerful way to integrate bill acceptor, coin acceptors, coin dispensers and cashless devices into PC based vending applications. The vending industry standard NAMA Multi-Drop Bus (MDB) may now be interfaced to a PC using the MDB-RS232. The MDB-RS232 allows Coin Acceptance, Change Dispensing, credit card reader and bill validation all controlled by the PC.Conforms to all NAMA MDB specification and is compatible with any MDB compliant vending device. Hardware interface comes with cables,user's guide and user's protocal.

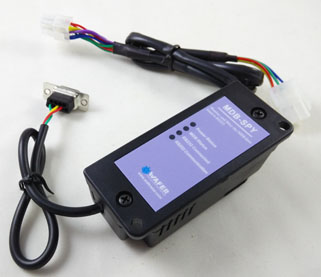

MDB-SPY Interface For vending PC machine

MDB-SPY is a wafer designed hardware allows a PC or RS232 device to monitor the vending machines. And it can send the RS232 serial data to PC when every mdb bus have the data happen.

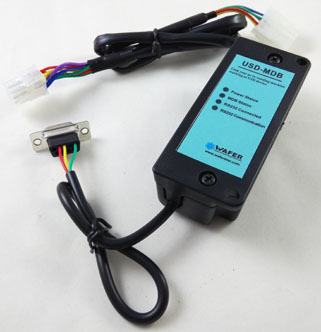

USD-MDB Interface For vending PC machine

MDB is a wafer designed hardware allows a PC or RS232 device to control the vending machines. And it can send the RS232 serial command to vending machine to dispenses the goods. By using USD-MDB Device which designed according the MDB protocol, the PC can now dispense goods in any MDB protocal vending machine,of course that vending machine MDB protocal must support the USB interface.
