ITL Bill acceptor ( bill validator )series:
Since developing the world’s first low cost, multi-currency bank note validator (Smiley NV1), Innovative Technology Ltd
(ITL) has rapidly grown to become a major supplier to manufacturers worldwide.
ITL track record in research, development and cutting edge innovation is substantiated by ITL unique
SPF™ core technology that ensures an industry-leading acceptance rate for multi-currency of typically 99.8%.
For bill acceptor listing:

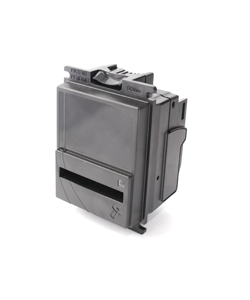

BV20 bill acceptor |
BV20 bill acceptor Technical data
Technical Data
Accepts notes in just 2 seconds
Weight: 0.3kg
Optical anti-strim beam
Supporting all standard protocols
Power Supply: 12VDC +/- 10%
Compact dimensions: 110x98x58mm
Standard bezel design
Simple and advanced programming tools via configuration card, PC or handheld unit
|

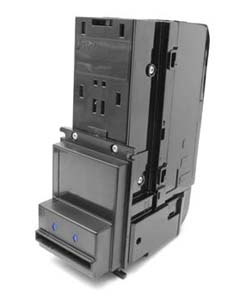

BV100 bill acceptor |
BV100 bill acceptor Technical data
Technical Data
Up or down stacking
USB on-board
Accepts notes in just 3 seconds
Power supply 12VDC +/- 10%
Simple and advanced programming tools via configuration card, PC or handheld unit
Optical and mechanical anti-strimming devices
Weight: 1.0kg
Supporting all standard protocols
Compact dimensions: 96x238x128mm
Standard bezel design
|
BV50 bill acceptor |
BV50 bill acceptor Technical data
Technical Data
Accepts and stacks bills in just 3 seconds
Weight: 0.8kg (1lb 12oz)
Compact dimensions: 85x127x225mm
Power Supply 12VDC +/- 10%
Supporting all standard protocols
Simple and advanced programming tools via configuration card, PC or handheld unit
Optical and mechanical anti-stringing devices
Standard bezel design
Accepts bills up to 66mm wide
Up or down stacking
|

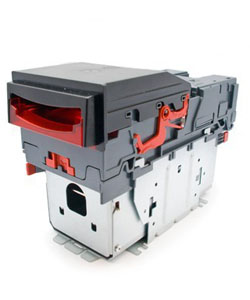

NV9USB bill acceptor |
NV9USB bill acceptor Technical data
Technical Data
Accepts and stacks notes in just 3 seconds
Compact Dimension: 104x222x156 mm
Weight: 1.7kg
Power supply: 12VDC +/- 10%
Supporting all standard protocols and eSSP
Simple and advanced programming tools via configuration card, PC or handheld unit
Optical and mechanical anti-strimming devices
USB capable
|

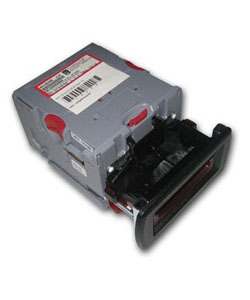

NV10USB bill acceptor |
NV10USB bill acceptor Technical data
Technical Data
Accepts notes in just 3 seconds
Weight 0.55kg
Combined Dimensions: 104x161x86mm
Power Supply: 12VDC +/- 10%
Supporting all standard protocols
Simple and advanced programming tools via configuration card, PC or handheld unit
USB capable
|

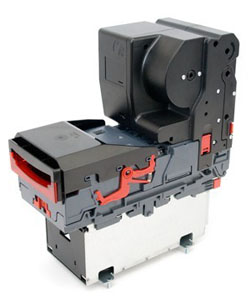

NV11 bill acceptor |
NV11 bill acceptor Technical data
Technical Data
30 note capacity
Horizontal mounting only
Standard cashbox capacity: 300 notes (other cashboxes available on request)
Combined dimensions:
246x222x104 mm
Combined Weight: 2.2 kg
Power supply: 12V +/- 10%
USB capable
eSSP Protocol (encrypted SSP) & ccTalk
|

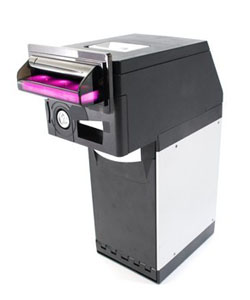

NV200 bill acceptor |
NV200 bill acceptor Technical data
Technical Data
USB on-board
Accepts and stacks notes in just 3 seconds
Power supply 12VDC +/- 10%
Simple and advanced programming
using a PC, handheld unit or Atmel Dataflash Card
Optical and mechanical anti-strimming devices
Cashbox capacity: 500 or 1000 street grade notes
Weight: 3.0kg
Supporting all standard protocols
Compact dimensions: 114x217x298mm
New Operational Manual Available - Click Manual
|
Recommended Applications
- Amusement machines e.g. kiddie rides,video games, pool tables etc
- Low value vending machines e.g.hot/cold drinks, medical items,newspapers, shoe shining etc.
|
