Person counter / people counter / people counting device WF-5001

The WF-5001 indoor people counter is designed to provide a simple, robust and reliable counting system suitable for public areas with entrances and exits up to 10 metres wide.

Package including: 1. Transmitter box 2. Receiver box 3. SD card (2G) 4. SD card PC reader 5. Power adapter (Two pieces)

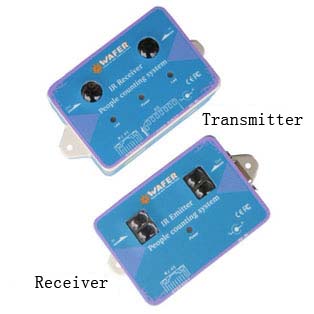

The system consists of a transmitter and receiver that are placed on either side of the entrance. The units are powered with DC9V power adapter and have low power consumption. The system uses a fast-pulse narrow infra-red beam and operates effectively in all indoor conditions, including strong sunlight. The units are supplied in strong ABS plastic boxes suitable for high usage areas and with tamper-proof screws making the counter highly resistant to vandalism.

1. RS485 Connector 2. SD Card Slot 3. Power Connector 4. RS232 Connector 5. Reset Button

Features:
10 meters sensing distance
Extremely robust construction
Low power consumption
No external sensors, cables, switches
Unaffected by bright sunlight
SD card memory data stored,easy to be stored

Specifications:

People counter WF-5001 program adapter

People counter WF-5001 Optional Counter display box

Display box:size: 79mm*43mm; Maximum counter number:99999

Software show:

Accessories: Double side sticker sheet

Installation projects:
