Control board for variable Timer control vending machine systems:

Order the samples directly from http://www.wafer-shopping.com :

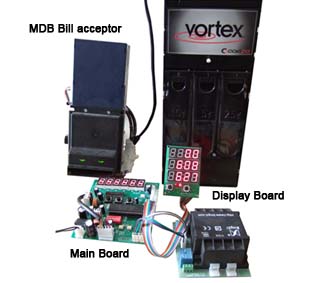

MDB control board for vending machine

MDB Timer Control Board - Double Output Channel

Output: Double Channel Relay Control Output
Input: MDB Bill Acceptor and MDB coin validator

1.Credit saved and easy to be checked;
2.System setup easily through the push button;
3.Connector for Pulse type acceptor also optional.

Wafer can do the OEM design for the MDB control board for the vending system.

MDB Board can connect to the MDB type coin acceptor, MDB type bill acceptor and others.

MDB-SMART MDB Timer Control Board
- Single Output Channel

Output: Single Channel Relay Control Output
Input: MDB Bill Acceptor and MDB coin validator

1.Credit saved and easy to be checked;
2.System setup easily through the push button;
3.Connector for Pulse type acceptor also optional;
4.We have the smart sensor to seen,monitor and alarm everythings;
5.Smart timer pause design,customer pause the machine,and timer would be paused;

Our board has the Smart eye for self-service business

MDB Timer Control Board - Single Output Channel

Output: Single Channel Relay Control Output
Input: MDB Bill Acceptor and MDB coin validator

1.Credit saved and easy to be checked;
2.System setup easily through the push button;
3.Connector for Pulse type acceptor also optional.

Wafer can do the OEM design for the MDB control board for the vending system.

MDB Board can connect to the MDB type coin acceptor, MDB type bill acceptor and others.

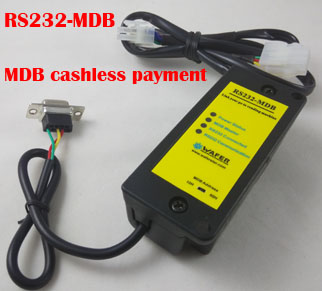

RS232-MDB (PC2MDB ) Interface for vending machine,working as the cashless payment device

A PC-based vending application that utilizes NAMA’s Multi-drop Bus protocol to interface a computer with the existing vending machine. PC2MDB allows the PC to act as a slave cashless device for existing vending machine controllers (VMC). The PC2MDB interfaces any MDB vending device to the PC via the serial port. and allow the PC to control the vending machine.



MDB-RS232 ( MDB2PC ) Interface For kiosk computer or vending PC machine

A simple yet powerful way to integrate bill acceptor, coin acceptors, coin dispensers and cashless devices into PC based vending applications. The vending industry standard NAMA Multi-Drop Bus (MDB) may now be interfaced to a PC using the MDB2PC. The MDB2PC allows Coin Acceptance, Change Dispensing, credit card reader and bill validation all controlled by the PC.Conforms to all NAMA MDB specification and is compatible with any MDB compliant vending device. Hardware interface comes with cables,user's guide and user's protocal.

WF-501LCD Timer Control Board for Power Supply with Timer Display

1. DC12V Power input
2. Controls electrical devices ( TV, Massage chair..) power supply
3. 5000Watt electrical relay capacity
4. Options: Single-coin/Multi-coin validator
5. Digital timer: rate adjustable by owner through three simple setup button;
6. Inside board LCD Display board,that can setup the system parameters and check the income history

WF-502LCD Timer Control Board for Power Supply with Timer Display

1. AC110V-240V power input
2. Controls electrical devices ( TV, Massage chair..) power supply
3. Two Relay output
4. Options: Single-coin/Multi-coin validator
5. Digital timer: rate adjustable by owner through three simple setup button;
6. Inside board LCD Display board,that can setup the system parameters and check the income history;

Mostly suitable for Coin Operated Self Serve Dog Wash, pet wash machine

WF-200 Timer Control Board For vending machine

WF-200 is a series of the coin control board. can be used widely.These control board can setup up the coin numbers and the delay time through the DIP Switch.

WF-500E Timer Control Board for Power Supply with Timer Display

1. Controls electrical devices ( TV, Massage chair..) power
2. Digital timer: rate adjustable by owner through two simple push button switch;
3. SPDT Relay Output for timer control

Check more on the WF-500E Board --->>>>>>

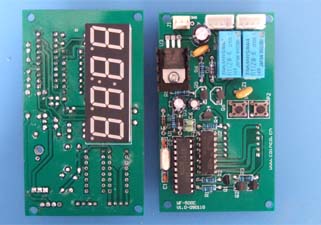

WF-500C Timer Control Board for Power Supply with Timer Display

1.Controls electrical devices ( game machine,amusement machine....)
2.Suitable for public place location
3.Options: Single-coin/Multi-coin validator
4.Digital timer: rate adjustable by owner through two simple push button switch;

5.Two DPDT Relay Output for timer control,that is very suitable for play stations timer control.

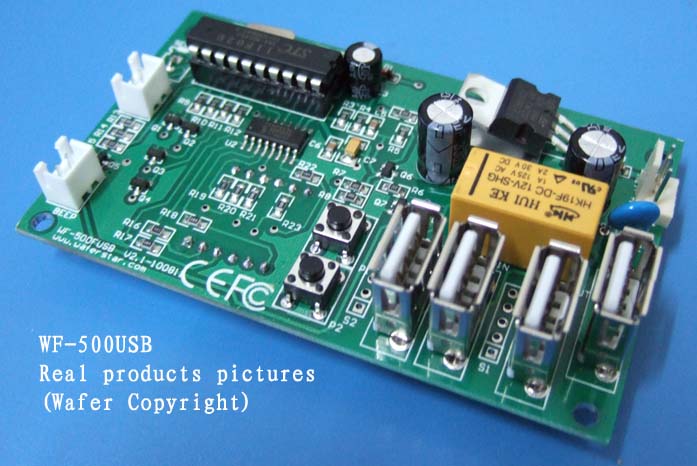

WF-500USB Timer Control Board for Double USB Channel

1.Controls USB devices ( Computer,Game machine..)
2.Suitable for public place location
3.Options: Single-coin/Multi-coin validator
4.Digital timer: rate adjustable by owner through two simple push button switch;

5.Double USB Output for timer control,that is very suitable for play stations timer control,game machine.

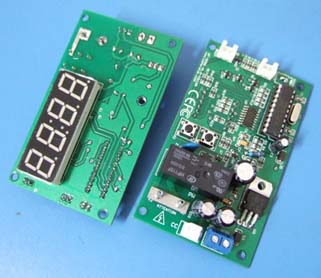

WF-500G Timer Control Board

1.It can used in the coin operated project like Car wash, Coin-Op PC, Water dispenser, Vending machine. Coin-Op WIFI.Coin-Op Hot Sport;
2.Suitable for public place location;
3.Support any pulse type Single-coin/Multi-coin validator;
4.Digital timer: rate adjustable by owner through two simple push button switch;

5.It can inhibit the coin acceptor when the timer is already running. this is especially suitable for the project like children game machine.

WF-500KIOSK Internet Kiosk Computer Control Board ( Development Kits for Kiosk Computer)

1. RS232 to report the coin data to PC
2. Coin acceptor with inhibit relay or Power control
3. Reset Relay output for computer
4. Double USB control channel
5. Auto-inhibit,auto-reset output
6. Easy for customer to develop the PC application software

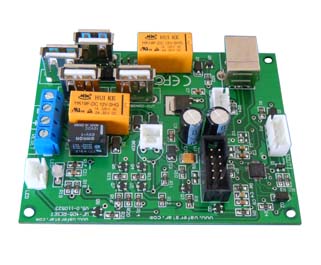

WF-4011 USB Type Coin Control Board for Internet Cafe and Internet Kiosk

Hardware and Software, Robust Safety Protection. No any crack and cheat !.

WF-4011 kiosk computer System Safety features:
1. System software to lock the computer when timer is out
2. Hardware lock for keyboard to protect any cheat on system
3. "Reset"computer function to protect the system crack

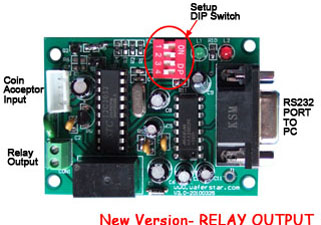

WF-700-RELAY

PC Adapter is used to connect the Coin acceptor to PC.that can be connected with any pulse output type Coin acceptor and translate the pulse output signal to RS-232 type signal to PC.

Also has the relay output for the control output ,that can be used for the coin acceptor inhibit and also can be controled by the PC instruction.

(Manual of WF-700-RELAY)

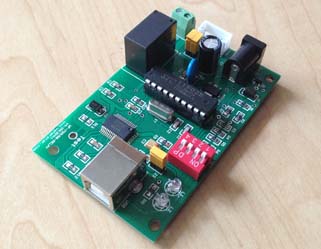

WF-700USB

PC Adapter is used to connect the Coin acceptor to PC.that can be connected with any pulse output type Coin acceptor and translate the pulse output signal to PC usb port.

Also has the relay output for the control output ,that can be used for the coin acceptor inhibit and also can be controled by the PC instruction.

(Manual of WF-700-RELAY)
