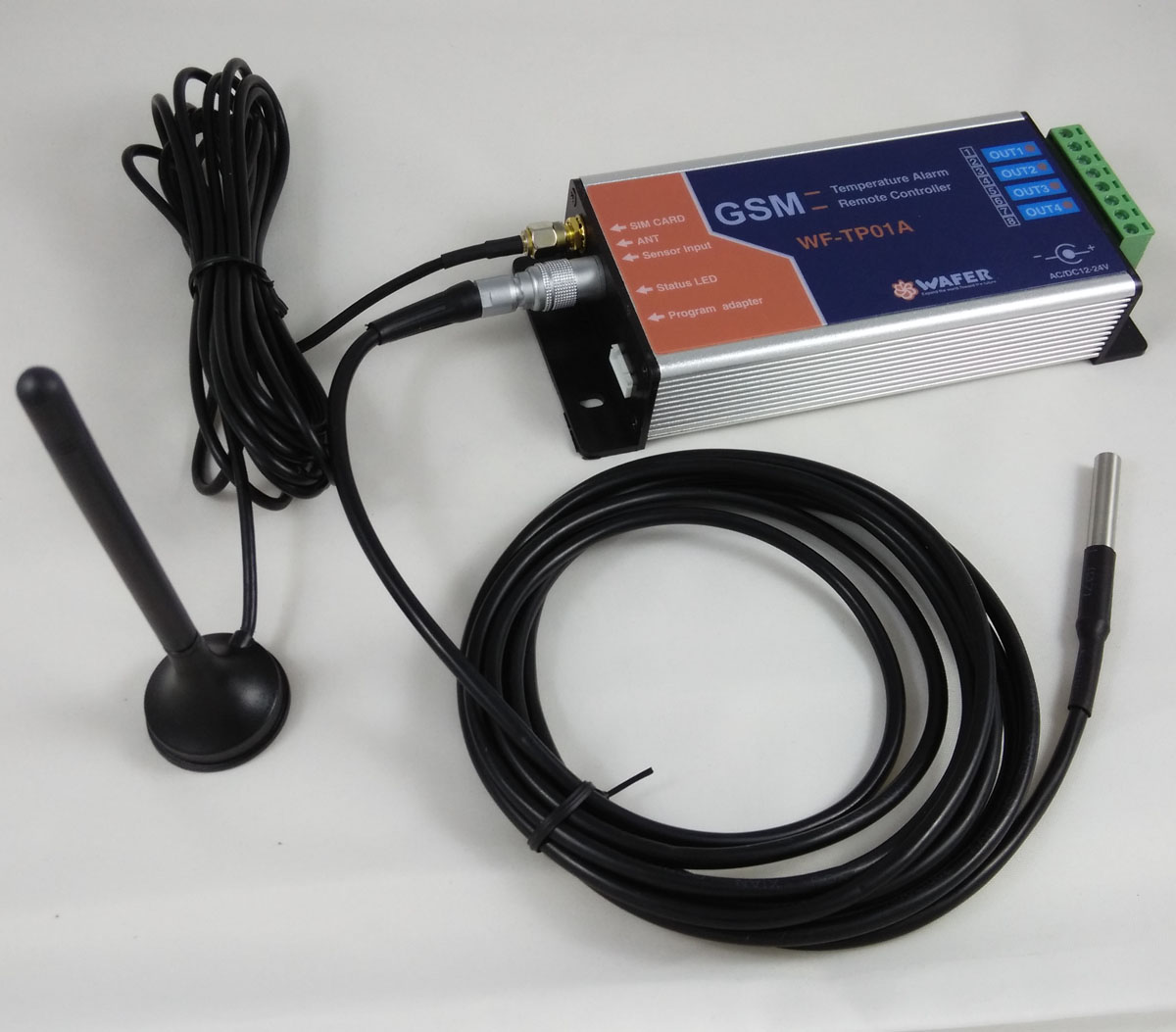

GSM Temperature Monitoring and remote control system (Model: WF-TP01A)

The WF-TP Series is a complete standalone temperature monitoring solution. One of the most compact and best value for money GSM temperature monitoring solutions on the market, the WF-TP Series is perfect for a wide range of applications where the user requires up-to-date temperature information or alerts. It can be placed anywhere with a GSM signal and will monitor and record the temperature from its sensor, attached via a cable, available in 1, 2, 3 , 5 and 10m lengths. Please note that the regular sensors are not suitable for immersing in liquids.

Package including:

One pcs WF-TP01A GSM temperature alarm and controller
One pcs AC to DC12V power adapter
One pcs GSM Magnet mount antenna (3 meter wire length)
One pcs USB program adaper

Our standard products is QUAD GSM BAND at 850/900/1800/1900 MHz, Before order ,please confirm your working frequency. and select the right products for your project.

Order the samples directly from http://www.wafer-shopping.com :

GSM Temperature & Humidity monitor and alarm device manual ( For TP01A/TP02 )

SMS Commands:

The WF-TP Series temperature monitoring unit can be configured both via a PC using a simple windows application, or by SMS text message commands to change the various settings; for example, to change maximum and minimum temperature limits, or request the current temperature and the WF-TP Series will text back the current temperature.

Typical Applications:

Server Room Monitoring
Museums, Archives, Galleries
Laboratory and Quality Test Workshops
Hospital Room Monitoring
Air-Conditioned Rooms
Cold Storage Monitoring
Green House Monitoring
Building Management and Automation

  • Robust aluminium construction.
  • Unlimited range wire free temperature monitoring using GSM module.
  • Relay outputs to control most automation systems (volt free).
  • Easy operation with 2 numbers in monitor and remote control.
  • Works with mobile phones and land lines.
  • Mains powered with AC/DC12v-24V power adapter.
  • 0.5'c Temperature Detection accuracy

Download: PC Working parameters program software and manual:

GSM Temperature & Humidity monitor and alarm device manual ( For TP01A/TP02 )

WF-TP GSM temperature controller USB Program adapter to PC Software:
